Part1: Client-side Apps

Why clientside App Frameworks?

• helps you write rich web applications that are well structured (MVC) and backend agnostic.

• Helps you cut down the amount of boiler plate code within your application significantly

• Easily integrates with third party JavaScript libraries and CSS libraries

• Improves usability and app reactivity

• Technology of tomorrow for building responsive web applications

Traditional Websites

Client-side Apps

Why clientside App Frameworks?

• helps you write rich web applications that are well structured (MVC) and backend agnostic.

• Helps you cut down the amount of boiler plate code within your application significantly

• Easily integrates with third party JavaScript libraries and CSS libraries

• Improves usability and app reactivity

• Technology of tomorrow for building responsive web applications

Traditional Websites

Client-side Apps

• HTML, CSS and JavaScript serialized on the Server-side and passed to the client
• Full-page refresh when the user clicks on links
• Heavily reliant on the traditional HTTP Request/response lifecycle
• Easy to cache the website pages on the server

Why clientside App Frameworks?

• helps you write rich web applications that are well structured (MVC) and backend agnostic.

• Helps you cut down the amount of boiler plate code within your application significantly

• Easily integrates with third party JavaScript libraries and CSS libraries

• Improves usability and app reactivity

• Technology of tomorrow for building responsive web applications

Traditional Websites

Client-side Apps

• HTML, CSS and JavaScript serialized on the Server-side and passed to the client
• Full-page refresh when the user clicks on links
• Heavily reliant on the traditional HTTP Request/response lifecycle
• Easy to cache the website pages on the server

• Full JavaScript application sent on the first request

• Subsequent requests only transmit data

• Usually have a rich application-like user interface

• Faster navigation and user interaction

• Supports the rich feature set that users have come to expect from modern web based applications

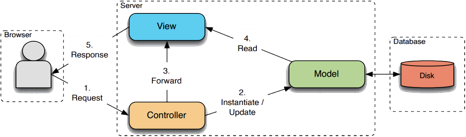

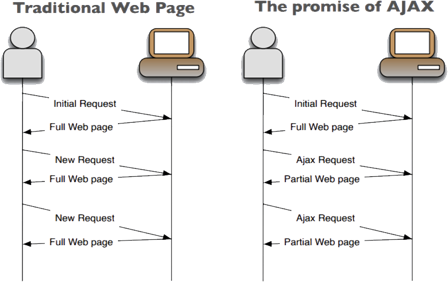

Why is client-side better?

Keeps both the application state and each user’s state on the server

If the user requests data to be updated, a complete new page is generated and transferred over the wire to the browser

Traditional server-side app

Why is client-side better?

Still Keeps both the application state and each user’s state on the server

Still the same number of page requests and processes on the server-side, less overall data transferred results in less bandwidth consumption.

server-side app with Ajax

5. Partial Response

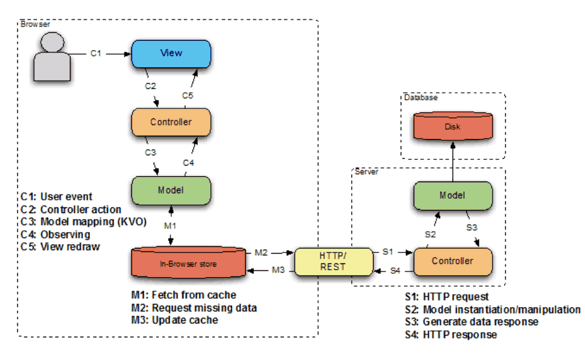

Why is client-side better?

Application and user state is maintained on the client side.

One full page request at the start of the session. Then just data requests.

Huge reduction in server-side resources, since application only invokes API methods when data is needed, not necessarily whenever a new page is viewed.

Why is client-side better?

Comparison: Click on 10 static pages (100KB/ea) and perform 5 dynamic actions on data (10KB) in each page (with 10,000 daily users).

Per Day

server-side

10∗10,000 = 100,000 page loads

10 ∗ 5 ∗ 10,000 = 500,000 loads with data

100,000 ∗100KB + 500,000 ∗110KB

= 65 GB bandwidth consumed

server-side w/ajax

10∗10,000= 100,000 page loads

10∗5∗10000=500,000 partial page loads

100,000 ∗100KB + 500,000∗10KB

= 15 GB bandwidth consumed

Faster page transitions

client-side

1 ∗ 10,000 page loads

10 ∗ 5 ∗ 10000=500,000 data api calls

10,000 ∗ 100KB + 500,000∗10KB =

6 GB bandwidth consumed

Instant page transitions

Why is client-side better?

Comparison: Click on 10 static pages (100KB/ea) and perform 5 dynamic actions on data (10KB) in each page (with 10,000 daily users).

The savings adds up

59 GB / Day

413 GB / Week

21535 GB / Year (21.5TB)

Amazon WS Charges about 8¢ per GB

So… over the year that’s about $1722 in savings from pure server-side to client-side app. If you scale up to 100k daily users its $17,220, 1M daily users $172,200…etc

Facebook has 936M daily users

Hence this kind of change would result in about 159 million dollars in savings yearly for them.

Part 2: What is Ember.js?

What is ember

• Browser-based MVC framework

• Eliminates spaghetti code

• Provides a standard (good) architecture for building apps

• Makes hard things (bindings) easy to do

Who uses ember?

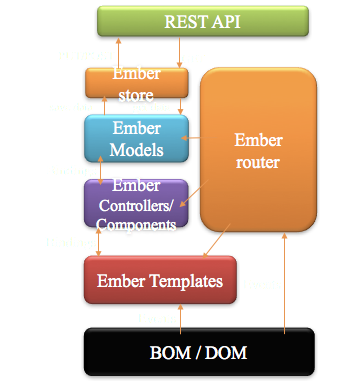

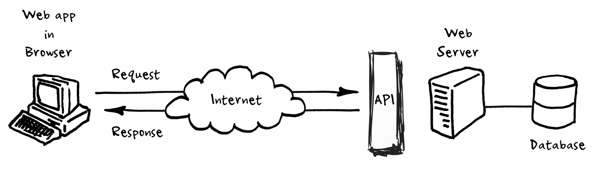

Where it Lives

Where it Lives

Once a page is rendered

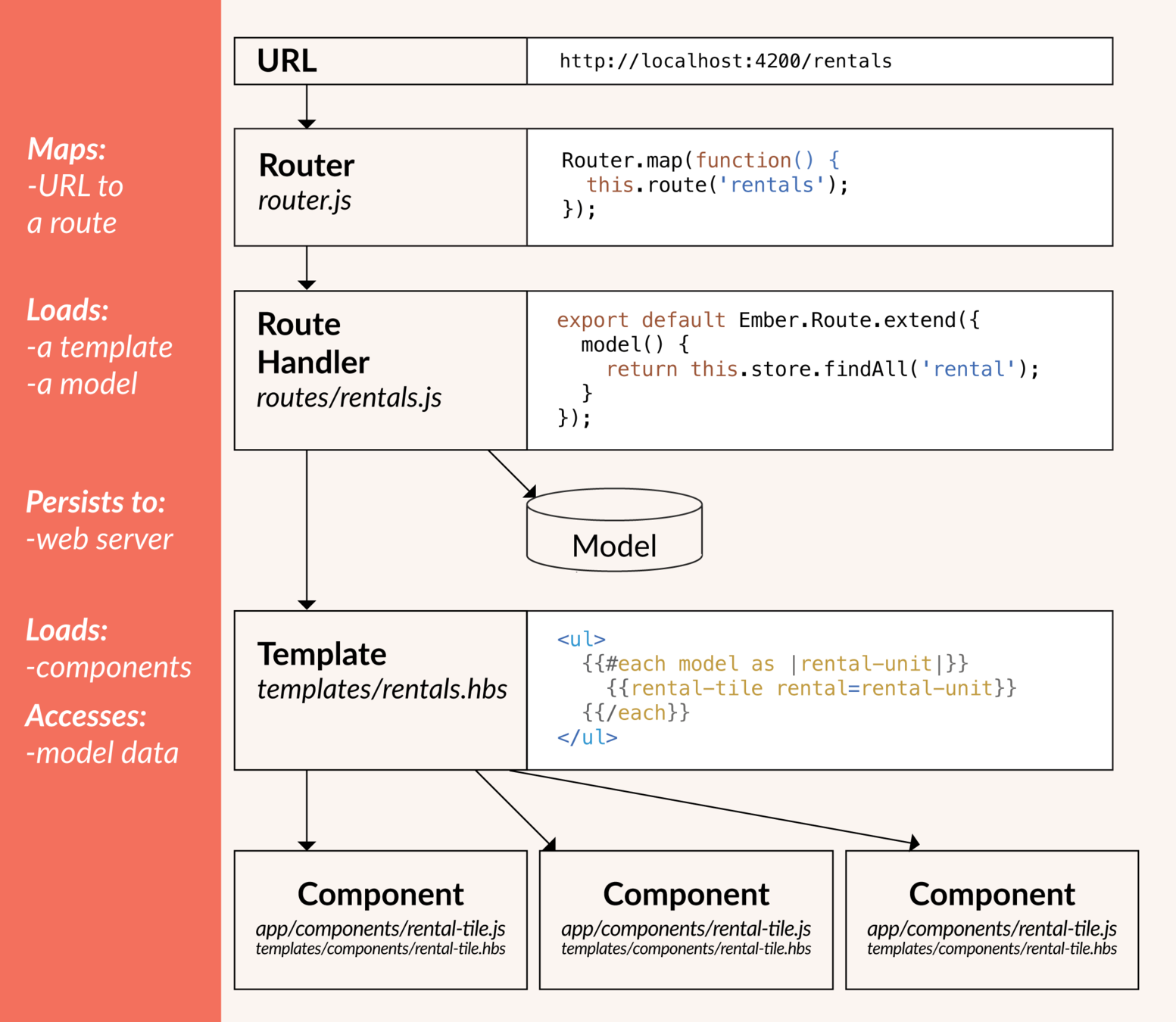

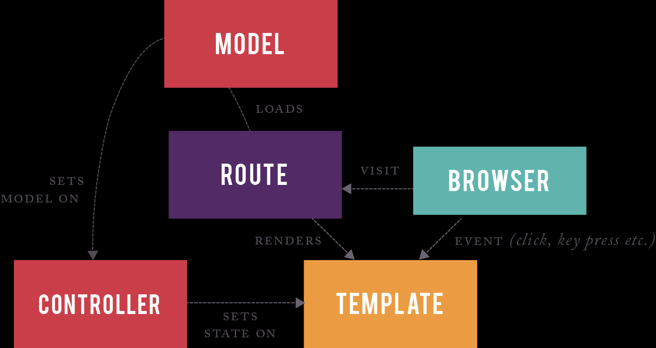

Important MVC Concpts in Ember

Router

The router is the switchboard statemachine that tells ember what to load based on the user’s request (urls).

• urls are states
• Handles actions that are transitions between states
• Sets up model data for the controller to manipulate
• Renders a template for user viewing

Router (ex)

Router.map(function() {
   this.route(‘home'); //path will be at /home
   this.route(‘about', { path: '/favs' });
   this.route(‘photos’);
   this.route(‘photo’, { path: ‘/photo/:photo_id’}); //dynamic segments can pass parameters

});

Model

Ember models are just javascript objects to represent data on the clientside

• Just provides an abstraction layer to encapsulate data
• You can use ember data or jQuery (Ember.$.getJSON()) to get data from a server
• Ember-data uses a store (next)

Model (Ex)

import DS from 'ember-data';
export default DS.Model.extend({
  eventtype: DS.attr('string'),
  timestamp: DS.attr('date'),
  userid: DS.attr('number'),
  requestor: DS.attr('string'),
});

Controller

The controller is the brains of the operation.

• Handles user actions, relay url state changes to the router.
• Manipulates model data
• Can make additional ajax requests to API
• Used to control elements rendered in a template

Controller (Ex)

import Ember from 'ember';
export default Ember.Controller.extend({
   somebooleanvariable: true,
   somevalue: 1,
   somecomputedproperty: function(){
      return this.get(‘somevalue’) +1;
   }.property(‘somevalue’),
   actions: {
     someAction: function(){
        //do stuff here
        console.log(‘this will create a debug statement in the console’)
     },
     refreshData: function(){
       this.send(‘refreshModel’);//this will fire an action off to the router
     }
   },

});

Templates (Handlebars)

Handlebars templates are the user interface in ember. They generate HTML when rendered and maintain bindings to controller/model variables.

• Update automatically whenever bound variables are changed in the controller/model
• Rendered by the router when the user visits a particular url
• Pass user events to controller/router to be handled

Template (Ex)

Components

A component is basically a controller and a template grouped together for a specific purpose. The template is where the presentation (view) goes, while the component.js file is where the brains (controller) goes to control that view.

Handlebars Syntax

• Simple expressions are identifiers that tell Handlebars.js to replace the contents of the expression at runtime

• Expressions can traverse into your object-structure via dot-notation

• Simple expressions can also render entire components, and have properties and property-bindings

Handlebars Syntax

A Note on Ember CLI

Ember CLI

Ember ships with its own CLI tooling for creating new files within the ember namespace. It uses NPM and yarn (old school used to use bower) to handle gathering required packages.

It also has a MASSIVE addon community that supports so many use cases. Often you just need to do ember install <addon> to fully implement something you need.

More info at emberaddons.com

Live DEMO

Live OF Using with django

hint: build into /backend/static/ember folder
